Low Voltage Battery
V5°/V5°α
The new LFP battery for home energy storage system. /nIt helps to save your money on electric bill when use during peak, and make you feel confident facing outage, with electricity stored either from solar panels or grid. /nConnection Options /nV5°: PHOENIX M6 Bolt /nV5°α: Amphenol SurLok Plus 8.0mm
Official
Core Features
Higher Charge/Discharge Rate
- •Recommended Charge Current 75A
- •Maximum Charge Current 100A
- •Recommended Discharge Current 75A
- •Maximum Discharge Current 100A
- •Peak Discharge Current 101-120A (3min)
- •Peak Discharge Current 121-200A (15sec)
Multiple Protection
- •BMS Over Current Alarm
- •Short Current Protection
- •FUSE 360A
Heating System
- •Keep the Battery Working in the Optimal Temperature Range
- •Wider Battery Operating Temperature Range
- •Multiple Protections -- Software & Hardware
- •Low Power Consumption - 170W
- •Over 10 Years Design Life
WEB/APP
- •Real-time Monitoring
- •Remote Upgrading
- •Alarm Notification
- •Data Visualization
- •Error Detection
Cell Contact System
- •High Reliability
- •Highly Integrated
- •High Energy Density
- •High Security
Wide Compatibility
- •Compatible with most inverter brands on the market.
Certifications
- •UL9540 Ed.2 (2020), UL9540A, UL1973, CEC, SGIP, CE, IEC62619, UN38.3
- •OEM Co-Listing Available
Long-lasting and Efficient
- •≥6000 cycles @90%DOD, Ret@70%, 25℃
- •>95% Round-trip Efficiency
- •10 Years Warranty, Up to 20 Years Design Life
1 / 3
V5°/V5°α · Galeri Produk
1 / 3
Detail

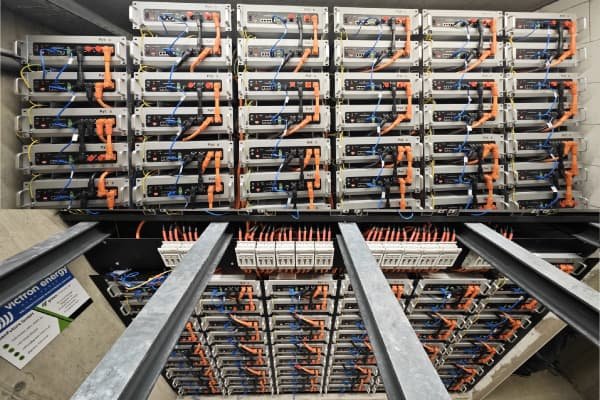

Austrian dairy farm
This large Austrian dairy farm showcases the massive scalability of Pytes V5. With 96 units at their parallel limit & Victron inverters, this 491.52 kWh system demonstrates extreme capacity for robust, off-grid power.
